Relay® inserter systems with file control
The simple way to increase productivity and accuracy.
Your physical communications should be treated with the same scrutiny you afford your digital data.
Mitigate risk
Managing compliance is becoming more complex with new regulations and increasing concerns around protecting consumer data.
With file control, you can track and confirm every customer’s document as it’s completed and recreate a mailing event to prove it.
Improve production
Using file control, you are guided through job setup and material loading, and in the event of errors, can easily reprint damaged documents.
You can see exactly which pages are finished, in process, and even which pages are coming. Production doesn’t slow down to verify your mail is assembled correctly.
Increase efficiency
The ability to work with multiple flat and letter-sized envelopes means you can automate even more of your mailings across departments.
No manual change-over and a straight paper path help ensure you mail process has minimum interruptions.
Protect revenue
Consumers are highly unlikely to do business with any company that does not protect their privacy. Relay inserters with file control help ensure the contents of your customers’ mail are accurate.
It also helps you finish your mail faster, so you can send it to your customers faster.
Scroll across to learn more about each model
Relay 5000
Ideal for mid-volume mailers, the Relay 5000 inserter uses the same reliable design of our flagship table-top inserter. Insert, fold and seal up to 4000 envelopes per hour using a simple, straight paper-path. The Relay 5000 gives you all this in a small footprint, so the basic system can fit on a standard 60" inch table.
Relay 6000
The Relay 6000 improves productivity with the optional high capacity sheet feeders, each able to hold 2000 sheets. The Relay 6000 inserting system is capable of assembling up to 4,300 pieces per hour. You get enhanced speed and accuracy for your various mailing jobs.
Relay 7000
The Relay 7000 comes standard with a high capacity envelope feeder which translates into 25% increased hourly throughput vs. Relay 6000. The inserting system can also process letter and flat envelopes in the same job. It can assemble up to 5,400 envelopes per hour, keeping you productive while delivering world-class accuracy and privacy for your mail.
Relay 8000
For higher volume mailers, the Relay 8000 enhanced chassis gives you 67% more monthly throughput than the Relay 7000 – up to 200,000 pieces per month. This inserting system can process letter and flat mail with speeds up to 5,400 envelopes an hour for letter or flat mail. You get the peace of mind knowing your mail is completed accurately on a reliable system.
01. Upload file
Upload print file or pdf.
02. Add barcodes
Relay adds barcodes to documents and creates Reference File.
03. Send to inserter
Documents are printed with barcodes and File is sent to inserter.
04. Fold, insert and track
Inserter scans barcode which points to record in Reference File for instructions.
Each piece is folded and inserted and tracked accurately.

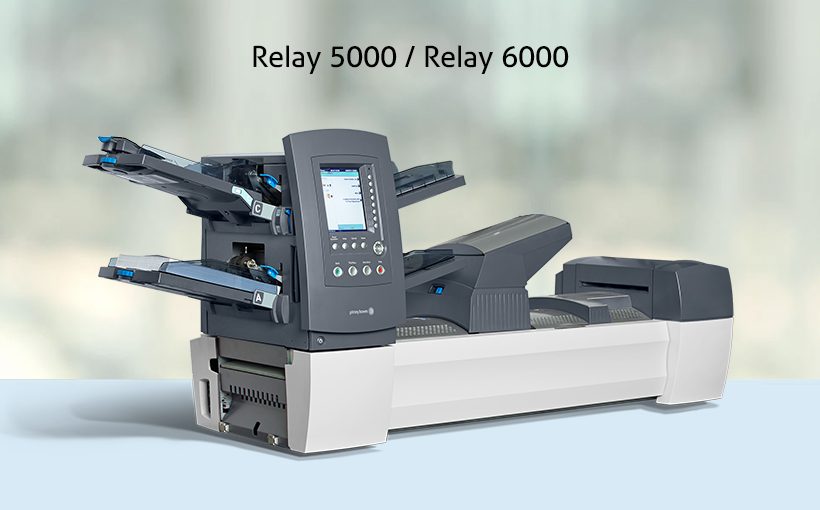

Relay 5000 / 6000 specifications
Specifications Relay 5000
|
Specifications Relay 6000
|
|
Throughput |
4,000 per hour |
4,300 per hour |
Monthly capacity |
62,500 |
120,000 |
Fold options |
C, Z, Half, Double, No Fold |
C, Z, Half, Double, No Fold |
Integrity options |
OMR, 1D, 2D, exit scanning, File-based processing |
OMR, 1D, 2D, exit scanning, File-based processing |
Sheet feeder paper sizes |
127mm x 165mm to 250mm x 355mm |
127mm x 165mm to 250mm x 355mm |
Inserter feed media sizes |
72mm x 127mm to 152mm x 250mm |
72mm x 127mm to 152mm x 250mm |
Envelope sizes |
89mm x 203mm to 162mm x 241mm |
89mm x 203mm to 162mm x 241mm |
Standard sheet feeder capacity |
Standard: 350 sheets |
Standard: 350 sheets |
Number of feeders |
7 (4 high capacity sheet feeders + 3 sheet/inserter feeders) |
7 (4 high capacity sheet feeders + 3 sheet/inserter feeders) |
Insert feeder capacity |
350 inserts |
350 inserts |
Envelope capacity |
250 envelopes |
250 envelopes |
Relay 7000 / 8000 specifications
Specifications Relay 7000
|
Specifications Relay 8000
|
|
Throughput |
5,400 per hour |
5,400 per hour |
Monthly capacity |
120,000 |
200,000 |
Fold options |
C, Z, Half, Double, No Fold |
C, Z, Half, Double, No Fold |
Integrity options |
OMR, 1D, 2D, Exit scanning, File based |
OMR, 1D, 2D, Exit Scanning, File Based |
Tower feeder paper sizes |
127mm x 165mm to 250mm x 355mm |
127mm x 165mm to 250mm x 355mm |
Inserter feed media sizes |
72mm x 127mm to 152mm x 250mm |
72mm x 127mm to 152mm x 250mm |
Envelope sizes |
165mm x 162mm to 267mm x 330mm |
165mm x 162mm to 267mm x 330mm |
Tower sheet feeder capacity |
Standard: 350 sheets |
Standard: 350 sheets |
Number of feeders |
8 (4 high capacity sheet feeders + 4 sheet/inserter feeders) |
8 (4 High Capacity Sheet Feeders + 4 Sheet/Inserter Feeders) |
Insert feeder capacity |
350 inserts |
350 inserts |
Letter envelope size |
High Capacity Envelope Feeder: 99mm x 226mm to 165mm x 264mm |
High Capacity Envelope Feeder: 99mm x 226mm to 165mm x 264mm |
Flat envelope capacity |
100 |
100 |
