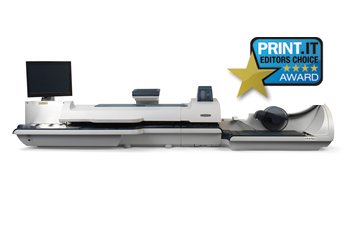

Connect+® 3000 Digital Franking Machine

-
  • 1

Promote your business in full colour across the full length of the envelope, top and bottom, front or back. Connect+ is easy to use with an intuitive colour touch-screen, built-in on-screen tutorials and programmable job presets... all designed to increase productivity.
Request more info
Watch the video Product Support
  • Overview
  • Features
  • Specifications
  • Resources

Using colour really works...

Research by Leflein Associates shows that envelopes overprinted with colour promotional messages are up to 2½ times more likely to be opened than plain equivalents.

A survey by CAP Ventures found that colour envelope messages can deliver 34% faster response rates and a 32% increase in overall revenue.

Read more about how your business can use colour to increase profitability

Read more Collapse
  • WOW processing including automatic shape-based rating
  • Four speed options: 105/165 (standard) 135/220 170/270 and 205/310 LPM in WOW / non-WOW modes
  • Color ink printing
  • Automatic Commercial-Based Pricing (CBP)
  • Adhesive tape standard
  • Gummed tape standard
  • Open- or closed-flap sealing
  • New pump-fed pad sealing system
  • On-screen keyboard (full QWERTY)
  • Flexible printing
  • Peripheral Options

Drop or power stacker options

  • New platform weighing option 5kg or 7kg capacity
  • Existing platform weighing options – 12kg or 35kg capacity
  • Laser Report Printer
  • Barcode Scanner
  • High-Speed LAN Connectivity
  • 3G mobile connectivity available (subscription charge applies)

Color Touch-Screen Display

  • 15" standard

Interfaced Scale Options

  • 5kg 7kg. small-platform options
  • 12kg 35kg. large-platform options
  • Differential weighing optional

Stacking

  • Drop stacker standard
  • Power stacker optional

Applications

  • MyAccount
  • Package Tracking
  • Royal Mail
  • Postal Tools

Software Options

  • From 300 department accounting (scalable to 3000 accounts)
  • Includes surcharge and weight-break capabilities
  • Energy Star mode

Core Supplies

  • Postal ink - three cartridge options: standard and large
  • Printhead life: 800000 cycles - customer-replaceable supply item
  • Tape 5" roll approximately 600 indicia per roll
Read more Collapse

Interfaced weighing options

5, 7, 12, & 35kg

Differential weighing

Optional

Accounting

100 standard

Up to 500 optional

Stacking options

Drop stacker or power stacker

Barcode scanner

Optional

External USB report printer

Optional

Print colour

Postal blue, black & white, process colour

WOW® Weigh-on-the-Way®

Standard

WOW® weight limit

500g

DOW® Dimensions on the Way®

Standard

System dimensions

With drop stacker Length 1,867mm x Width 648mm

Power stacker adds 483mm to length. Colour adds 165mm to length

Weight

63.6kg

Print quality

1200 dpi

Processing speed (letters per minute)

310/205 or 270/170 or 220/135 LPM

Color touch screen display/user interface

15" XGA

Media size

Minimum size: 89 x 127m

Maximum size: 254 x 356mm

Envelope flap depth

25 to 98mm (for sealing)

Envelope max thickness

Up to 19mm
Read more Collapse
