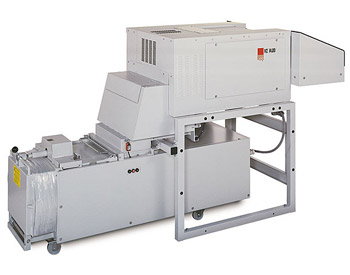

The VZ 14.00 / Level 5 Shredder/Baler Combination is a heavy duty shredder for top security standards.

Pitney Bowes Intimus VZ 14.00 / Level 5

-
  • 1

The VZ 14.00 / Level 5 Shredder/Baler Combination is a heavy duty shredder for top security standards. Comprising a pre-shredder of 6 x 50 mm cutting width followed by a cross-cut shredder of 2 x 4.5 mm shred size, an hourly output of up to approx.
Request More Info
  • Overview
  • Specifications
  • Resources

Shredder baler combination for high security applications: equipped with a pre-shredder for 6 x 50 mm and an after-shredder for 2 x 4.5 mm cross-cut this shredder equals security level 4 according to DIN 32757 - compression in the integral baler in the next stage ensures that even the requirements of security class 5 can be fulfilled. Practical throughput of up to app. 150 kg per hour.

  • Manual ON/OFF control
  • Auto Stop/Reverse/Restart
  • Sheet steel housing with hydraulic baler
Read more Collapse

Cutting size paper (mm)

2 x 4,5 mm

Security level

5

Security level DIN 66 399

P-6 / F-3

Cutting capacity (70g/m²)

90-100 sheets

Cutting capacity 80 g/m²

80-90 sheets

Cutting speed (m/sec.)

0,24 m/sec.

Working width (mm):

500 mm

DIN paper size:

A2

Motor Power kW

11,3 kW

Supply voltage (Volt):

400 Volt

Noise level:

74 db(A)

Weight gross (kg):

1580 kg

Weight net (kg):

1370 kg

Baler press force in (t):

8

Bale weight:

60-80

Bale dimensions (L/W/H) cm:

80x60x50

Width (cm):

120 cm

Depth (cm):

305 cm

Height (cm):

168 cm

In operation - depth cm:

366
Read more Collapse

Note: The above product is manufactured by Intimus and marketed in India by Pitney Bowes India.
