Model

GD7330

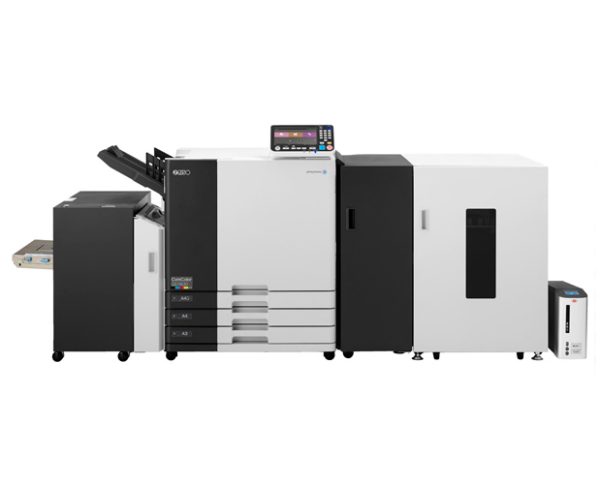

GD9630

Print speed

Simplex: Up to 130 ppm
Duplex: Up to 65 sheets/min (130 pp)

Simplex: Up to 160 ppm
Duplex: Up to 80 sheets/min (160 pp)

Sheet capacity¹

2,500 sheets
(1000 Standard Tray,
500 sheet drawer x 3)

2,500 sheets
(1000 Standard Tray,
500 sheet drawer x 3)

Print resolution (Standard)

Black: 600 x 600 dpi
CMYG: 300 x 300 dpi

Black: 600 x 600 dpi
CMYG: 300 x 300 dpi

Print area

314 mm × 548 mm

314 mm × 548 mm

Paper Weight (Standard Tray)

Simplex: 46 gsm to 210 gsm

Simplex: 46 gsm to 210 gsm

Ink

Oil-based pigment ink
(Cyan, Magenta, Yellow, Black, Gray)

Oil-based pigment ink
(Cyan, Magenta, Yellow, Black, Gray)

Print technology

FORCEJET™ in-line inkjet print heads

FORCEJET™ in-line inkjet print heads

Duty Cycle²

500,000 /month

500,000 /month

Dimensions (W x D x H)

In use:
1,220 mm × 725 mm × 1,160 mm
With cover and tray closed:
1,160 mm × 705 mm × 1,015 mm

In use:
1,220 mm × 725 mm × 1,160 mm
With cover and tray closed:
1,160 mm × 705 mm × 1,015 mm

Power source

AC 100 V - 240 V
12.0 A - 6.0 A
50 Hz - 60 Hz

AC 100 V - 240 V
12.0 A - 6.0 A
50 Hz - 60 Hz

¹ When using either A4 long-edge or letter long-edge feed plain paper and recycled paper (85 gsm), and standard density setting. Print measurement pattern [colour measurement sample 2 (JEITA standard pattern J6)].

² Average expected monthly cycle count is 300,000 cycles per month with an occasional increase of cycles up to the maximum 500,000.
