VERIFIED SOLUTIONi




Meter Connection Types

UPDATED: March 30, 2018

Your mailing system connects to the Pitney Bowes Data Center to refill postage, download software, update postal rates, and transfer data. Connecting your meter using a digital internet connection (wired LAN or Wi-Fi) is the preferred method. A digital connection is more reliable, convenient, secure, and costs less. You also have faster upload and download speeds.

Tip Learn more:

How to connect

Connection methods available for each meter






HOW TO CONNECT - Select an option for detailed information

Wired LAN cable Wired LAN / Direct Network Connection

Local Area Network (LAN) connection, also referred to as an Ethernet USB connection, uses a wire cable to connect to your internet source. A wired LAN connection is fast and reliable.

More about using a LAN connection method:



WiFi Wireless (Wi-Fi) Connection
Wi-Fi connection gives flexibility for where you put your meter, and eliminates trailing cables. Connect to a Wi-Fi network via the internet. Learn more:



PC icon PC Meter Connect™ (PCMC) Desktop Application

  • Connect your meter through your computer using the internet. Compatible with: mailstation, mailstation2, DM100i, DM125, DM225, DM300c™, DM400c™, DM475™
  • Learn about PC Meter Connect requirements



CONNECTION METHODS - Options by meter

Tip Learn more: Get connected to stay connected.

 Connection Options

           mailstation2

mailstation/mailstation2

       DM100i

  DM100i/DM200L

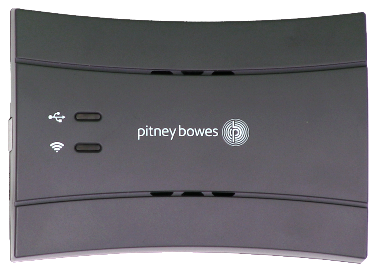

SmartLink Connectivity Kit*

Communication Device**

     n/a

PC Meter Connect

    *With meters shipped on or after July 18, 2016.
  **With meters shipped before July 18, 2016.
  = Included with the meter.

Connection Options

DM125 DM125™/DM225™    DM300c DM300C™/DM400C™            DM475    DM475™

  DM mega

DM500™-DM1100™

USB Ethernet Connectivity Kit

      USB Ethernet Enabled

WiFi Connection Device

O O O O

Wireless Connectivity Bundle

O O O O



= Included with the meter.

 O = Optional - visit our Meter Connectivity Shop.


Connection Troubleshooting
Issues with connectivity can have various causes including: internet connection; software application configuration; server time out; the mailing system itself. For help with connectivity and your meter, see: Troubleshooting your Connection.
